Occidental Leather Trim Carpenter Tool Belts & Bags

Occidental Leather 2003 Features

• Clip-on convenience for bags or pockets
• Protects tools, bags, and body from sharp edges
• Holds a chisel, knife, diagonal cutter; plus one round pencil
• Lightweight, compact, and jobsite-ready
• Made in the USA

Occidental Leather 2003 Applications

• Safe storage of sharp edge tools on the belt or in bags
• Protecting tool pouches and clothing from blade damage
• Keeping a round pencil handy alongside primary tool
• Organizing chisels, knives, and cutters for quick access

Occidental Leather 2003 Installation Overview

1. Attach the shield by clipping it to a tool bag edge or pocket.
2. Insert the primary tool into the main compartment.
3. Place a round pencil in the dedicated side slot.
4. Ensure the clip is fully seated and the tool is secure before use.

High Mount Hammer Holder Key Features

• High-mount profile reduces hammer swing
• 10 oz full-grain belting leather construction
• Heavy-duty 2.5 inch steel loop fits most hammers
• Fits work belts up to 3 inches wide
• Compact, comfortable carry; Made in the USA

High Mount Hammer Holder Applications

• Framing and roofing tasks
• Overhead work and ladder use
• Tight-space maneuvering
• General jobsite tool belt organization

High Mount Hammer Holder Installation Overview

1. Slide the holder onto a belt up to 3 inches wide.
2. Position at preferred height for a high-mount carry.
3. Insert hammer through the 2.5 inch steel loop.
4. Verify secure fit and comfortable clearance while moving.

Occidental Leather 5012 Features

• Dual-layer 12 oz leather construction with steel hardware
• Plated steel rivets and stitched leather back for durability
• Reinforced steel loop accommodates most standard hammers
• Fits belts up to 3 inches wide
• Made in USA

Occidental Leather 5012 Applications

• Framing and general carpentry
• Roofing tasks requiring quick hammer access
• Sheet metal and rigging tool carry
• Daily construction work belt organization

Occidental Leather 5012 Installation Overview

1. Thread work belt through the two slots on the holder.
2. Position at preferred location on the belt.
3. Ensure the steel loop faces outward for easy tool access.
4. Insert hammer and check for secure, minimal movement.

Occidental Leather 9525XXL Key Features

• 25 pockets and tool holders
• Round bottom, full capacity bags maintain shape
• Includes 2003 Oxy Tool Shield
• Hand specific tool layout for work rhythm
• 12 oz belting leather with steel roller buckle and padded nylon belt

Occidental Leather 9525XXL Applications

• Trim installation and finish carpentry
• Light framing and punch list tasks
• Cabinet, door, and window setting
• General tool carry and organization on site

Occidental Leather 9525XXL Installation Overview

1. Measure existing belt from buckle to the hole used to determine belt size.
2. Adjust the work belt so pouches ride at a comfortable height.
3. Place fastener bag on left and tool bag on right for standard layout.
4. Attach Oxy Tool Shield and 2-in-1 holder to preferred positions.
5. Load tools and confirm balance and comfort before use.

Occidental Leather 5522 Key Features

• 4-in-1 functionality for tape, pencil, crayon or screwdriver, plus sharp tools
• Full-grain American leather for long service life
• Free Oxy Tool Shield included for chisels, knives, cutters
• Belt-ready tunnel loop fits up to 3 in. belts
• Made in USA

Occidental Leather 5522 Applications

• On-belt organization for measuring and marking tools
• Carpentry and framing jobs requiring quick access to tape and pencil
• General construction and DIY tool carry
• Safe storage of sharp tools using the included shield

Occidental Leather 5522 Installation Overview

1. Slide the holder onto a belt up to 3 in. wide.
2. Seat the Oxy Tool Shield in the lower pocket.
3. Place tape measure in the main pocket.
4. Insert pencil and crayon or screwdriver in side sleeves.
5. Load sharp tools into the shield and verify secure fit.

Occidental Leather 5520 Key Features

• 5-in-1 functionality — organize hammer, pliers, pencil, crayon or screwdriver, and a sharp tool
• Removable Oxy Tool Shield protects chisels, knives, and other sharp edges
• Full-grain American leather for long service life
• Space-efficient footprint on your belt
• Slides onto work belts up to 3 inches wide
• Made in the USA

Occidental Leather 5520 Applications

• Framing and general carpentry hand tool carry
• Electrical trim and service work
• Punch list and maintenance tasks
• Everyday belt carry for essential hand tools

Occidental Leather 5520 Installation Overview

1. Slide the holder onto a belt up to 3 inches wide.
2. Position for preferred hand access on your belt system.
3. Load hammer, pliers, pencil, and crayon or screwdriver into the dedicated sleeves.
4. Insert chisels or knives into the removable Oxy Tool Shield.
5. Check fasteners and leather for secure fit before use.

Key Features

• Hand-specific tool holders for efficient access
• Padded two-ply, foam-core bags maintain shape
• Abrasion-resistant industrial nylon construction
• Adjust-to-Fit belt allows quick sizing changes
• D-rings pre-installed for suspension system compatibility
• Left-handed model available as 9540LH
• Made in USA

Applications

• Finish carpentry setups
• Trim installation
• Light framing tasks
• General jobsite tool and fastener organization

Installation Overview

1. Adjust belt to fit over typical work clothing.
2. Position left fastener and right tool bags for reach preference.
3. Attach the high mount hammer holder at the center back.
4. Clip Oxy Tool Shields to bags or belt as needed.
5. Load tools and fasteners evenly; connect suspenders to D-rings if used.

Occidental Leather 5020 Key Features

• Two tools, one footprint for belt space efficiency
• Slides easily onto standard tool belts
• 12 oz English bridle leather construction for durability
• Purpose built for pros and DIY users
• Made in USA

Occidental Leather 5020 Applications

• Carry a hammer and pliers or similar hand tool at the ready
• Carpentry and framing work on site
• General construction and remodel tasks
• Workshop and home project tool carry

Occidental Leather 5020 Installation Overview

1. Thread the holder loop onto your work belt.
2. Position at the preferred hip location.
3. Insert hammer into the metal loop.
4. Place a hand tool into the leather pocket.
5. Check clearance and adjust belt position for comfort.

Occidental Leather 2006 Features

• Protects pouches and bags from knives, chisels, scribes and other sharp tools
• Rigid polypropylene provides smooth, snag free tool access
• Universal fit for most tool bags and vest pockets
• Lightweight and durable for daily jobsite use
• Made in the USA

Occidental Leather 2006 Applications

• Line tool pockets to prevent punctures from sharp tools
• Outfit work vests and pouches for better tool organization
• Extend lifespan of tool bags by adding internal protection
• Keep chisels and knives upright for faster retrieval

Occidental Leather 2006 Installation Overview

1. Choose the pocket or pouch that holds sharp tools.
2. Drop the Pocket Shield into the pocket with the curve matching the pocket shape.
3. Seat it fully against the inner wall.
4. Load tools; verify smooth insertion and removal.
5. Reposition or replace the insert as it wears.

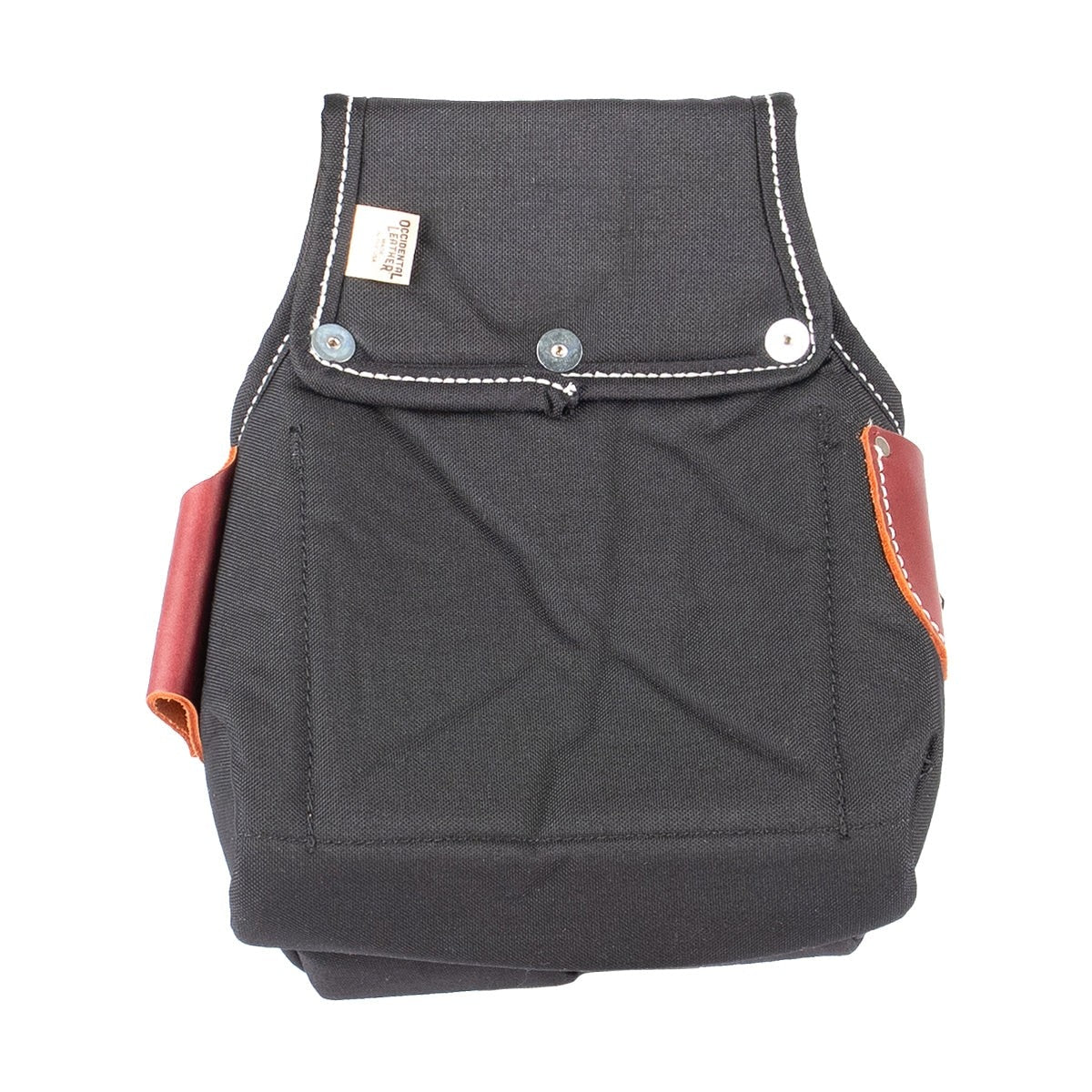

Occidental Leather 9520 Key Features

• Compact 2 in 1 design adds fastener capacity without extra bulk
• Round bottom nylon pouches hold shape and resist collapse
• Speed square slot for inside or outside carry
• Includes Oxy Tool Shield for sharp tool protection
• 11 total pockets and tool holders
• Available in right or left hand layouts
• Made in USA

Occidental Leather 9520 Applications

• Trim carpentry and finish installations
• General framing and layout tasks
• Organizing fasteners, bits, and small tools
• Speed square carry and quick measurement access

Occidental Leather 9520 Installation Overview

1. Slide the pouch onto a compatible work belt.
2. Choose left or right hand layout to match your setup.
3. Place fasteners in the main and outer bags; organize small tools in holders.
4. Insert sharp tools into the Oxy Tool Shield.
5. Seat the speed square in the dedicated slot for quick access.

Occidental Leather 5518 Features

• Long sleeve style keeps tools upright and close to the body
• Reduces tool swing to avoid knee capping
• Heavy duty full leather construction
• Fits belts up to 3 in wide
• Made in the USA

Occidental Leather 5518 Applications

• Carry and secure framing or finish hammers
• Holster for hammer tackers on the jobsite
• Flat bar storage up to 1-5/8 in diameter
• Reduce tool sway while climbing or walking
• Add a hammer sleeve to any 3 in belt

Occidental Leather 5518 Installation Overview

1. Slide the holder onto a work belt up to 3 in wide.
2. Position the sleeve where the tool is easy to reach.
3. Insert the hammer, tacker, or flat bar handle into the sleeve.
4. Confirm the tool sits securely and does not swing.
5. Tighten belt as needed for stable carry.

Occidental Leather 5523 Key Features

• 4-in-1 capacity for tape, pencil, crayon or screwdriver, plus sharp tool
• Includes Oxy Tool Shield for chisel, knife, or cutter protection
• Extra heavy duty steel clip fits belts up to 2 in wide
• Sturdy American leather construction for long service life
• Compact clip-on design saves belt space
• Made in USA

Occidental Leather 5523 Applications

• Everyday carry of tape measure and small hand tools
• Safe transport of chisels or knives with the included shield
• Carpentry and trim layout tasks
• General construction and remodeling

Occidental Leather 5523 Installation Overview

1. Slide the steel clip onto a belt up to 2 in wide.
2. Place tape measure in the main pocket.
3. Insert pencil and crayon or screwdriver into their sleeves.
4. Seat sharp tools inside the Oxy Tool Shield.
5. Adjust position on belt for comfort and access.

Key Features

• 12 pockets and tool holders in a compact, jobsite-efficient layout
• Two-ply foam-core construction maintains structure when empty or loaded
• Clip-on leather tab for tape or accessory pouches
• Steel hammer loop; interior leather tool sleeves
• Right-hand layout; left-hand model available as 9521LH

Applications

• Trim carpentry and finish work
• Light framing tasks
• Cabinetry and punch-list work
• Right-side tool carry for dominant-hand access

Installation Overview

1. Slide the bag onto a compatible work belt.
2. Position on the right side for standard orientation.
3. Attach clip-on leather tab accessories as needed.
4. Insert the Oxy Tool Shield for chisels or knives.
5. Load tools and check balance and access.

Occidental Leather 5047 Key Features

• Combo layout holds utility knife, two pencils, and a tape measure
• Accepts 35 ft tape or 25 ft FatMax; works as a chalk line holster
• Streamlined, lightweight design for finish work and tight spaces
• Rugged leather construction; riveted for durability
• Fits belts up to 3 inches wide; made in USA

Occidental Leather 5047 Applications

• Finish carpentry and punch list tasks
• Carrying tape, knife, and pencils for quick measurements and marking
• Chalk line holstering for layout work
• Streamlining tool access on compact belt setups

Occidental Leather 5047 Installation Overview

1. Slide the holder onto a belt up to 3 inches wide.
2. Seat the tape measure in the front pocket; remove the tape clip if needed for proper fit.
3. Allow leather to break in for snug, secure seating.
4. Insert utility knife and two pencils into their sleeves.
5. Verify comfortable placement and retention before use.

Occidental Leather 9008 Key Features

• High density cushion technology for hip comfort
• Light weight pads retrofit quickly to existing belt sets
• Accepts any bag up to 7.5 in wide
• Does not accommodate the 5525 Big Oxy Fastener Bag or B5611 Green Building Fastener Bag
• Made in the USA

Occidental Leather 9008 Applications

• Increase hip comfort on heavy tool belt setups
• Retrofit comfort upgrade for existing Occidental or other belt worn systems
• Use with compatible tool bags up to 7.5 in wide

Occidental Leather 9008 Installation Overview

1. Remove tool bags from your belt.
2. Slide a Hip Buddy onto each side of the belt at the hip locations.
3. Reinstall tool bags ensuring each is 7.5 in wide or less.
4. Adjust position for comfort and secure all attachments.

Occidental Leather 5545 Key Features

• Accepts nail strips up to 16D size
• Heavy belting leather construction
• Holds up to 8 racks
• Fits belts up to 3 inches wide
• Made in the USA

Occidental Leather 5545 Applications

• Keep nail strips at hand for faster nail gun reloads
• Organize collated nails while framing, roofing, or decking
• Reduce trips to refill fasteners on the jobsite

Occidental Leather 5545 Installation Overview

1. Thread the holster onto your work belt (up to 3 inch width).
2. Load collated nail strips into the pouch.
3. Position for preferred hand access and begin work.

Occidental Leather 5057 Features

• 4 pocket layout keeps small tools separated and easy to grab
• Premium leather construction with reinforced stitching
• In pocket carry or snap loop for belt use
• Fits most belts up to 2.5 inches wide
• Lightweight, compact design for everyday tasks
• Made in USA

Occidental Leather 5057 Applications

• Small repairs and service calls
• Electrical and shop maintenance
• Gardening and farm upkeep
• Cabinet and finish work

Occidental Leather 5057 Installation Overview

1. Load tools into the four pockets as needed.
2. Place the caddy in a front or rear pocket, or
3. Attach via the snap loop to a belt up to 2.5 inches wide.
4. Adjust position for comfortable access and secure carry.

Occidental Leather 5040 Key Features

• Quality leather and steel construction for durability
• Clip-on design allows quick on and off installation
• Spring steel clip fits belts up to 2 in wide
• Heavy-duty steel loop accommodates most hammers
• Made in USA

Occidental Leather 5040 Applications

• Keep a hammer secured to your belt for fast access
• Ideal for framing, carpentry, and general construction
• Convenient tool carry when working on ladders or overhead

Occidental Leather 5040 Installation Overview

1. Slide the spring clip onto your work belt.
2. Confirm the clip is fully seated and secure.
3. Place the hammer head through the steel loop.
4. Position for comfortable reach and adjust as needed.
5. Lift the clip to remove the holder when finished.

Occidental Leather 5006 Features

• Thick-pile sheepskin lining for maximum comfort
• Heavy harness leather exterior for durability
• No leading edge to prevent pressure points
• Slots accept belts up to 3 in wide
• Requires 1 to 2 in extra belt length
• Lighter than full belt liner model 5005
• Handmade in USA

Occidental Leather 5006 Applications

• Increase comfort when wearing loaded tool belts
• Reduce hip pressure during carpentry and framing work
• Use under tool bags to cushion heavy setups
• Improve circulation on long wear days

Occidental Leather 5006 Installation Overview

1. Loosen or remove tool bags from the work belt.
2. Slide each hip pad onto the belt using the end slots and position at the hips.
3. Reattach tool bags over the pads as needed.
4. Adjust belt length to account for 1 to 2 in extra length.
5. Check fit and comfort before use.

Occidental Leather 5046 Features

• Clip-on design installs without removing your belt
• High-mount position reduces swing and improves mobility
• Proprietary steel belt clip fits up to 2 in belts
• Heirloom quality leather construction
• Made in USA

Occidental Leather 5046 Applications

• Secure belt carry for tape measures
• Framing and carpentry layout work
• General construction and remodeling tasks
• Tool belt organization for pros and DIY

Occidental Leather 5046 Installation Overview

1. Slide the steel clip over your belt at the desired position.
2. Seat the holster high so the tape rests securely.
3. Insert your tape measure into the holster opening.
4. Verify the clip is fully engaged and the tape is accessible.

Occidental Leather 6100T LG Features

• Premium top grain leather construction
• Hand specific tool holders for efficient workflow
• Copper rivets reinforce main bags
• NoSpill tool holder system keeps tools secure
• Function engineered for modern builders
• Made in USA

Occidental Leather 6100T LG Applications

• Trim carpentry and finish work
• Light framing tasks
• General jobsite tool organization

Occidental Leather 6100T LG Installation Overview

1. Measure current tool belt from buckle end to your most used hole.
2. Select the size closest to that measurement; this model is Large.
3. Load tools into hand specific holders and secure in NoSpill positions.
4. Seat tape in the high mount holster and adjust belt to midpoint hole.
5. Verify comfort and accessibility before starting work.

Occidental Leather 9525LHM Key Features

• 25 pockets and tool holders
• Innovative round-bottom, full-capacity tool bags
• Includes 2003 Oxy Tool Shield in each bag
• Hand-specific tool holder layout for left-handed users
• Engineered for trim, finish, and light framing tasks
• 12 oz belting leather with steel roller buckle and padded nylon 3 inch work belt

Occidental Leather 9525LHM Applications

• Trim carpentry and punch list work
• Finish carpentry and cabinet install
• Light framing and layout
• General tool organization on the jobsite

Occidental Leather 9525LHM Installation Overview

1. Measure an existing belt you wear over work clothes to find belt size.
2. Buckle the belt on your waist where it will be worn and note the hole used.
3. Measure from the buckle to that hole; select the belt size that matches.
4. Position tool and fastener bags for a left-handed layout; secure holders.
5. Load tools and check balance and fit; adjust for comfort.

Occidental Leather 5156 Key Features

• Steel cradle style holder for secure hammer carry
• 2 in. belt slot sized for narrow belts
• Steel hardware riveted to extra heavy leather back
• Compatible with 2 in. Leather Work Belt 5002 and Stronghold Beltless rear strap
• Made in the USA

Occidental Leather 5156 Applications

• Secure hammer carry on 2 in. belts
• Framing and carpentry belt setups
• Use with beltless suspenda style rear straps
• General construction and remodeling

Occidental Leather 5156 Installation Overview

1. Thread a 2 in. belt through the two vertical slots.
2. Position holder at desired location on the belt or rear strap.
3. Tighten belt and ensure the holder sits flat against your side.
4. Insert hammer into steel cradle and check for secure fit.

Occidental Leather B5612 Features

• Light-weight, classic black all leather construction
• External leather hammer holder and double outer bags
• Internal pockets for level, chisel, drill bits, knife, pencils, and lumber crayon
• Reinforced back wall at stress points for durability
• Right-side wear layout; left-hand version available as B5612LH
• Made in USA

Occidental Leather B5612 Applications

• Organizing hand tools for carpentry and framing
• Quick-access storage for chisels, knives, pencils, and bits
• Carrying levels and small measuring tools
• General construction and remodel tool carry

Occidental Leather B5612 Installation Overview

1. Slide the bag onto a compatible work belt.
2. Position on the right side for right-hand access.
3. Load tools into main and outer pockets; place sharp tools in the Oxy Tool Shield.
4. Adjust placement for comfort and balanced weight.
